Reference

Specifications

Technical data for the EXACTUS® HELIOS. Items marked TBD are pending confirmation and should not be treated as final.

EXACTUS® HELIOS — measurement & hardware specifications
Range400–2000 °C / 752–3632 °F
ModesInstant, Average, Minimum, Maximum
Accuracy± 1.5 °C or 0.2 % of measured temperature
Drift0.10 °C per year max
Emissivity adjustment0.01 – 1.20 (default 1.00)
OpticsFixed focus
Target / spot size20 mm at 1–2 m, 30 mm at 3 m
Spectral response1 µm
Camera2 MP global shutter
LaserClass II, < 1 mW
Storage16 GB — approximately 300,000 measurements
Power sourceLi-ion 2-cell (1S2P) 3.7 V, 5200 mAh, 19.2 Wh — user-replaceable
Weight600 g (1.3 lb)
Operating range10–60 °C
SealingIP61
Display4-inch touchscreen
On the confirmed values. The emissivity range (0.01–1.20), drift (0.10 °C per year max), spot size (20 mm at 1–2 m / 30 mm at 3 m), storage capacity (16 GB / ~300,000 measurements), and user-replaceable battery are confirmed.

Approvals

Certifications

The EXACTUS® HELIOS (H01) has been tested to and found in compliance with the harmonized standards under the EU Low Voltage Directive (2014/35/EU) and the EU Electromagnetic Compatibility Directive (2014/30/EU), supporting the CE mark.

Safety — LVD 2014/35/EU

Tested to the harmonized safety standard for the EU Low Voltage Directive:

  • EN IEC 62368-1:2024+A11:2024 — audio/video, information and communication technology equipment, safety requirements

Test report HS-2025001-L1, issued 1 Dec 2025.
Testing body: EU Certification Technology Co., Ltd. (Taichung City, Taiwan).

EMC — EMC Directive 2014/30/EU

All emission and immunity tests returned a PASS result against the harmonized standards:

  • EN IEC 61000-6-3:2021 — generic emission
  • EN IEC 61000-6-1:2019 — generic immunity
  • EN IEC 61000-3-2:2019+A1:2021 — harmonic current emissions
  • EN 61000-3-3:2013+A2:2021+AC:2022-01 — voltage changes, fluctuations, and flicker

Coverage: conducted & radiated emissions (< 1 GHz), ESD, RF field immunity, and power-frequency magnetic-field immunity — all within limits.
Test report EC5N0403 (Version 01), issued 8 Dec 2025.
Testing laboratory: Sporton International Inc., Hsinhua Laboratory (Taoyuan City, Taiwan).

CE conformity mark
CE mark — supported by the LVD and EMC test reports above.

Identification

The nameplate label

The Helios carries a nameplate label with the serial number, hardware version, and order code. Quote the serial number and firmware version (from About This Device) when contacting support.

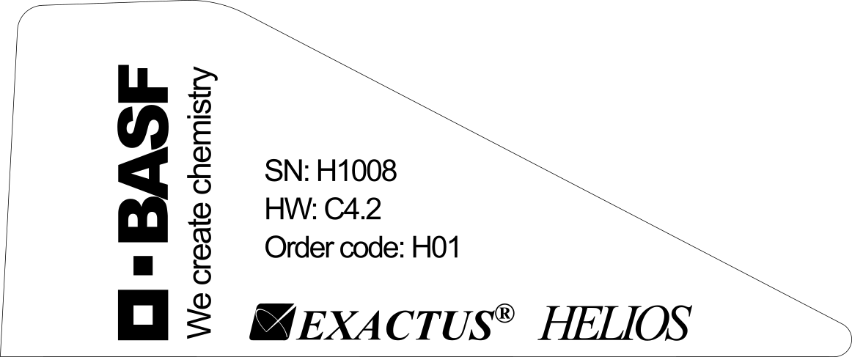

Example nameplate label layout
Figure 1 — Example nameplate label (layout illustration)

Label fields

  • Serial number
  • Device / hardware version
  • Order code
The values shown on the example label are illustrative, not real device data. Final label layout and field naming are TBD.
